Work Log is now live at journal.eyanje.net.

This took a long time, mainly because of the inadequate security options on existing routers. I thought, for a long time, that I would have to reconfigure my entire network to place a single server online. However, I found a solution that allows multiple machines to live on the Internet without drastically changing existing network infrastructure.

Deployment process

Ingredients

  1. An unused laptop, which will be used as a server.
  2. An old router, which will be accessible on the internet.
  3. A working router, which will serve general internet traffic.

Steps

  1. On the laptop, install the current stable version of Debian, and install and run the server.

  2. On the laptop, enable incoming traffic to HTTPS.
    ufw allow https

    The site should now be accessible for any local machine with the appropriate DNS entry. This can be achieved by editing /etc/hosts.

  3. Install OpenWrt onto the old router. Configure the router so that it relays RA, DHCPv6, and NDP messages between the lan and wan6 interfaces.

    This was actually necessary on my home network, since the old router could only receive a 64-bit prefix and couldn’t receive downstream packets. However, this will be necessary for exposing the server online.

  4. Plug the old router into the working router and ensure that it has internet connectivity.

  5. On the laptop, use NetworkManager to connect to the old router, then add a static IPv6 address

    nmcli device wifi connect OpenWrt password secretpassword
nmcli connection modify OpenWrt ipv6.addresses 2600:4040:538f:7200:906a:5250:8a2f:75fe

  6. On the router, add a firewall rule to enable incoming HTTPS traffic to the server.

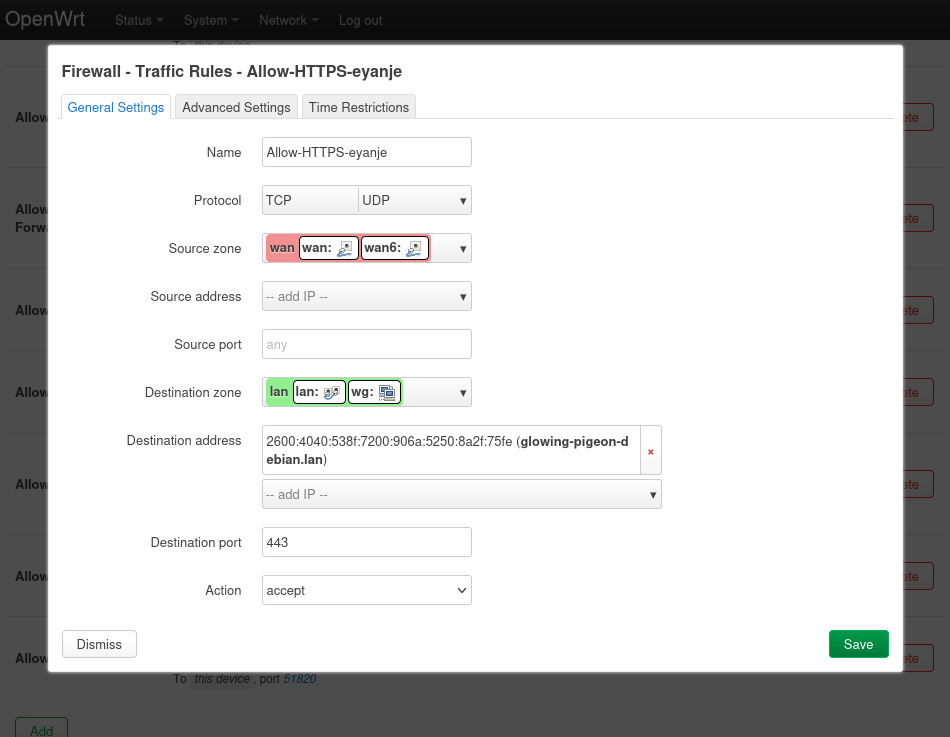

    Allowing HTTPS traffic through LuCI

    It should now be possible to access the site on the working router.

  7. Enable DMZ in the working router, exposing the old router to the internet.

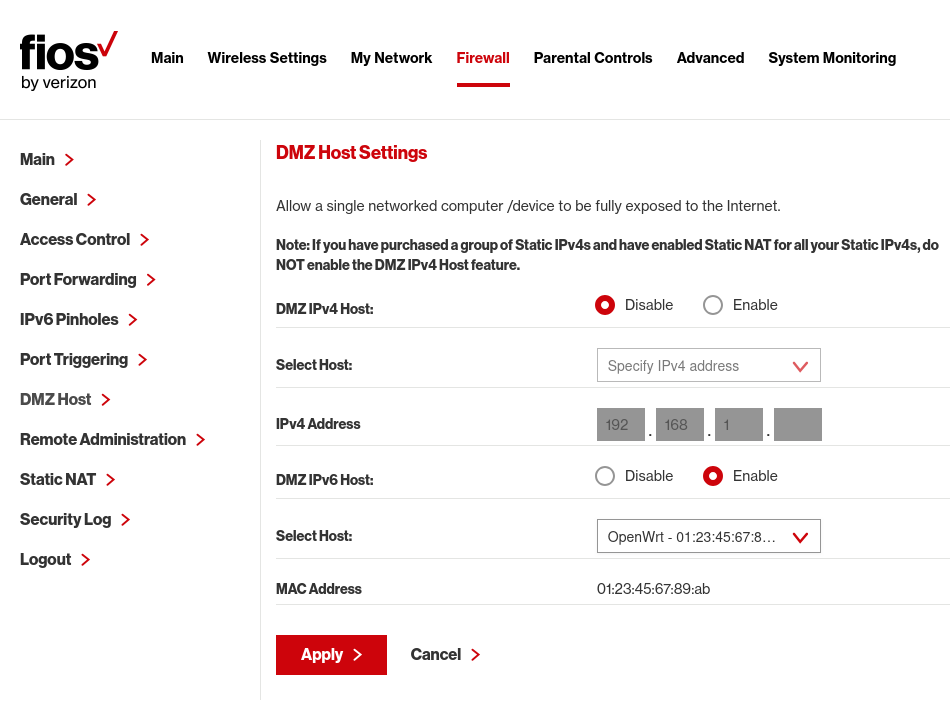

    Enabling DMZ in a Verizon FiOS router

    It should now be possible to ping the router on mobile data, and the site should now be accessible to any machine on the internet with the appropriate DNS record, which, like before, can be achieved by editing `/etc/hosts/.

    Normally, the DMZ host feature would only allow a single machine to be exposed, but, since the router is relaying DHCPv6 and NDP messages, multiple machines’ IPv6 addresses can be exposed and routed.

  8. Set up global DNS records. Specifically, add an AAAA record pointing to your server’s public IPv6 address.

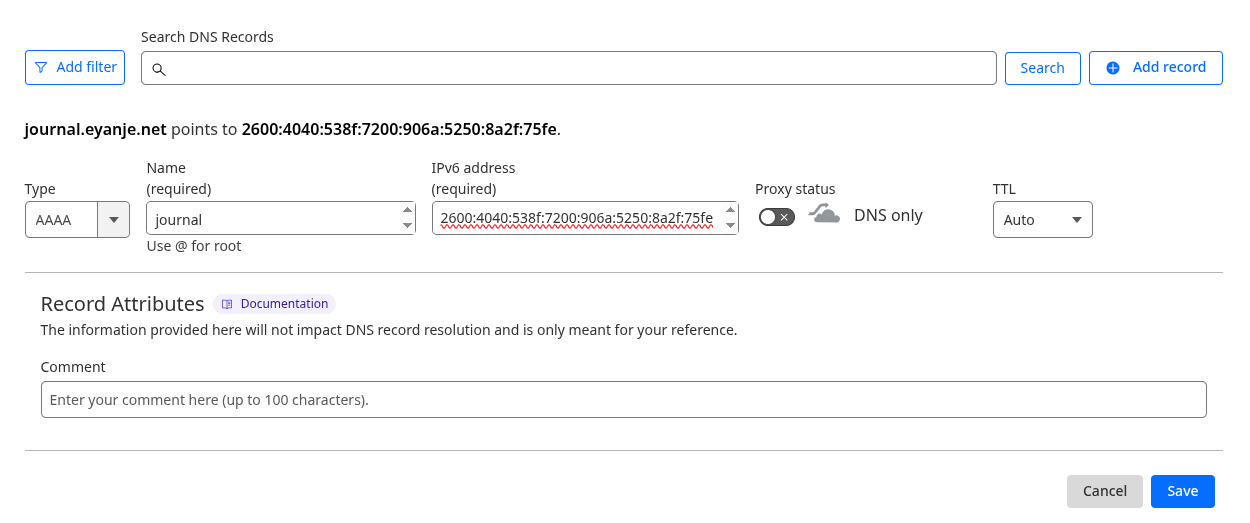

    Adding a DNS record

    I did this through my registrar Cloudflare’s website.

  9. Test connectivity with the site. It may take up to 24 hours for the site to be accessible, depending on the speed at which DNS servers receive the new DNS record.

Setting up a VPN

For convenience, I also set up a WireGuard VPN on my home network. This would have enabled me to work from any network, not just my home network.

I decided install WireGuard onto my old router, since it was already routing packets to my server. I installed the luci-proto-wireguard package, restarted the router, and added a new interface. I set up peers in the router and in my personal machine by generating keys and configuring IP addresses.

After setting up, I found that I could ping the router, and the router would receive those packets. However, it would not return any of those pings, making no effort to transmit data back.

The source of this problem, after a lot of searching, was that there was no route back to my machine. To fix this, I went into the WireGuard interface’s Peer settings, and, for every machine, enabled the “Route Allowed IPs” setting. This enabled packets to return back to the specified machine.

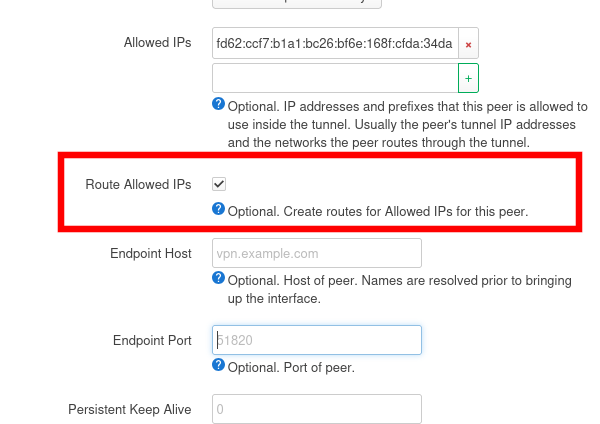

Enabling the Route Allowed IPs setting

Since I wanted the server to always be accessible, I also needed to allow WireGuard through its firewall, and I needed to keep an entry in my router’s routing table. To do so, I configured the server’s WireGuard interface to use a single listen port and to send keep-alive packets every 25 seconds by editing the relevant connection in /etc/NetworkManager/system-connections/, a snippet of which is shown below.

[wireguard]
listen-port=51820
private-key=mysecretkey

[wireguard-peer.WqSr1f569WY7Pu03Jo05Hyxe3HG0HTNs2v7U5iwQf28=]
endpoint=my-wireguard-server:51820
persistent-keepalive=25
allowed-ips=fdc7:4eb4:b8ae::1/48

WqSr1f569WY7Pu03Jo05Hyxe3HG0HTNs2v7U5iwQf28= should be the peer’s public key.

VPNs as security

After setting up and using the VPN to access my home network’s resources, I’m surprised to find how much control it has given me to configure the network.

Computer networks, for practical reasons, are set up around physical arrangements. However, an organization’s security is based on a virtual premise: not just the machines, but also who is in control of those machines, what those people are allowed to do.

If we base an organization’s security based on its physical layout, an employee will be kicked out if they move away, losing access to network resources like web sites and printers. Meanwhile, if a guest plugs in an ethernet cable, those same, seemingly exclusive resources suddenly make themselves available.

Instead, if we configure our organization’s security based on a completely virtual (private) network, then our employee can keep access to resources they need, even if they are not physically connected to a router we own, and a guest can enjoy Internet connectivity without also accessing sensitive resources.

Now that my home network has a VPN, I’ve enabled myself to work from anywhere with Internet connection, not just my home, without exposing my entire network to attack. Years ago, if I needed access to ssh or an administrative panel, I just forwarded a port and hoped that no one would attack it. Now, I can access any resource on my server and even configure my home network’s settings, and I only need to trust in the VPN’s security to do so.

Next week

There are a lot of things to work on.

  1. Work Log doesn’t look that great. It has one very basic home page, and all of its features require an account.
  2. I haven’t set up mailing, so users can’t really sign up for accounts.
  3. Work Log still has Laravel’s branding everywhere.
  4. The last time I deployed Work Log, it took half an hour. I want to automate this process so that I don’t babysit a single build, waiting to run the next step.

Next week, I will be looking for work. I still want to develop Work Log, and maybe some other projects, but my priorities will be shifting somwhat.
